Bartels Autorouter®
Routing Examples
The following images shows some examples of PCB designs which were automatically routed with the
Bartels Autorouter®.
Figure 1a displays a medium size conventional printed circuit board with some manually pre-routed critical traces and power supply connections:

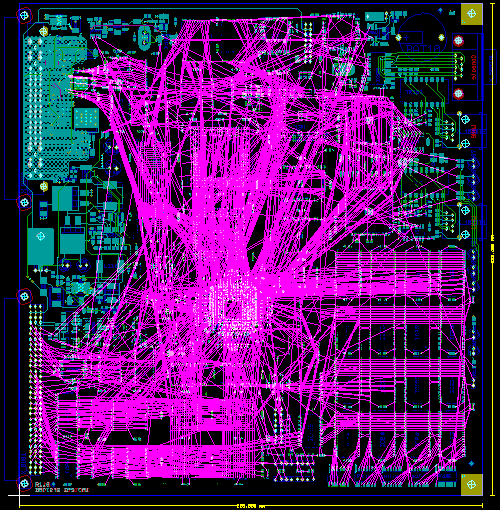

Figure 1a: Bartels Autorouter Application Example - Medium Size Conventional Board (unrouted)
Figure 1b shows the automatically routed version of the PCB layout from
figure 1a. The
Autorouter used four signal layers and two power planes:

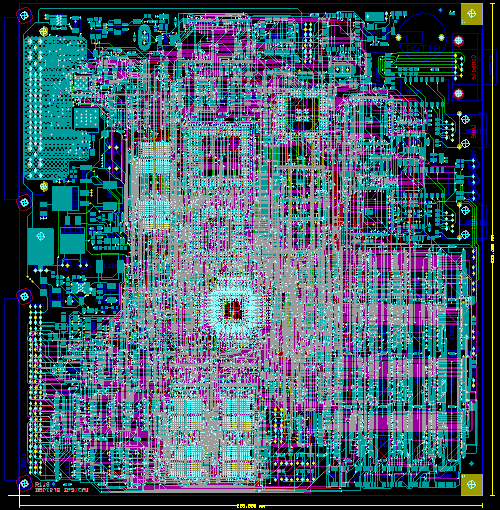

Figure 1b: Bartels Autorouter Application Example - Medium Size Conventional Board (automatically routed)
|
