Version 6.4
Highlights

PDF Version (215 KB; updated 24 October 2008)

Contents

Project-wide Bus Tap Name Display
Labels with SCM Sheet Reference Display
Automatic SCM Block Symbol Generation for Hierarchical Designs
SCM Option for Direct Label to Pin Connections
SCM Option for connecting Connection Segments to Pin Rows
New Toolbar Functions
Direct Coordinate, Angle, and Size Editing through Hotkey
Layout Editor Pick Point Display
Improved Layout Editor Segment Move Display
Layout Editor Hotkey Function for Trace Necking with DRC
Trace Bunch/Pattern Generation
Via Pattern Assignments to Fill Areas

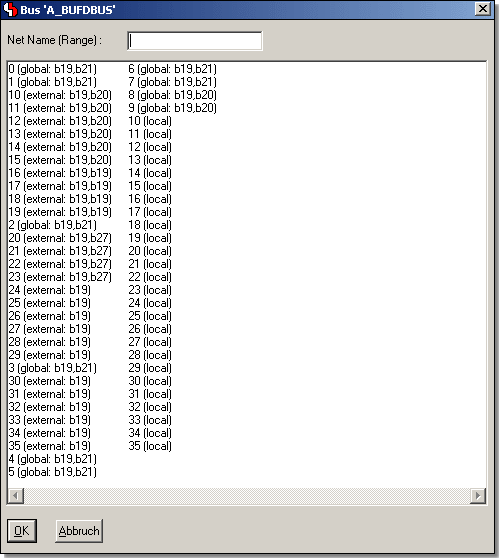

Project-wide Bus Tap Name Display

BAE Version 6.4: Schematic Editor Dialog - Bus Tap Selection

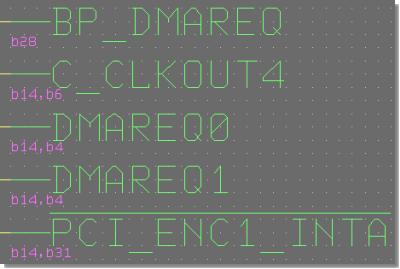

Labels with SCM Sheet Reference Display

BAE Version 6.4: Schematic Editor - Label with SCM Sheet Display

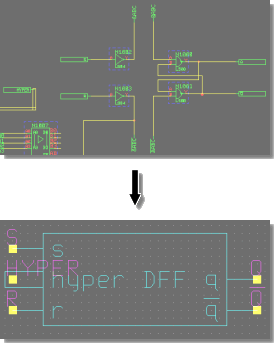

Automatic SCM Block Symbol Generation for Hierarchical Designs

BAE Version 6.4: Schematic Editor - Automatic SCM Block Symbol Generation for Hierarchical Designs

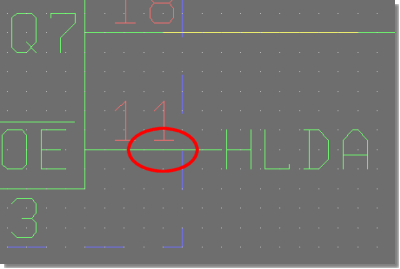

SCM Option for Direct Label to Pin Connections

BAE Version 6.4: SCM Option for Direct Label-to-Pin Connections

SCM Option for connecting Connection Segments to Pin Rows

BAE Version 6.4: SCM Option for connecting Connection Segments to Pin Rows

New Toolbar Functions

SCM Toolbar Buttons for Quick Drawing Function Access

BAE Version 6.4: SCM Toolbar Buttons for Quick Drawing Function Access
Layout Toolbar Buttons for Quick Documentary Layer Access

BAE Version 6.4: Layout Toolbar Buttons for Quick Documentary Layer Access
Layout Toolbar Buttons for Color Table Management and Access

BAE Version 6.4: Layout Toolbar Buttons for Color Table Management and Access

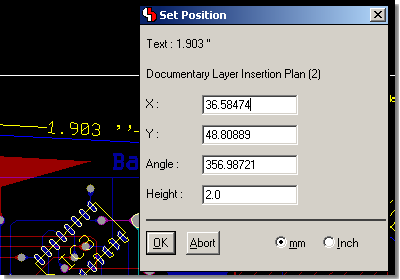

Direct Coordinate, Angle, and Size Editing through Hotkey

BAE Version 6.4: Direct Coordinate, Angle, and Size Editing through Hotkey

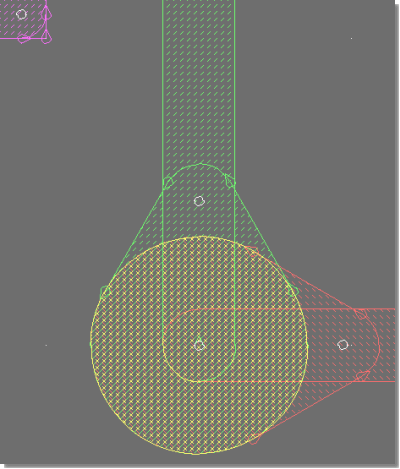

Layout Editor Pick Point Display

BAE Version 6.4: Layout Editor Pick Point Display

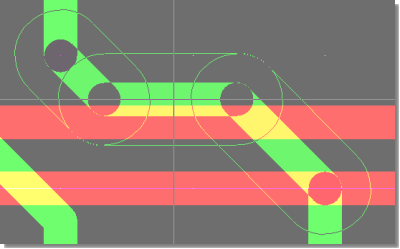

Improved Layout Editor Segment Move Display

BAE Version 6.4: Improved Layout Editor Segment Move Display

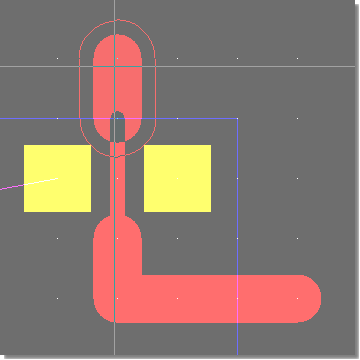

Layout Editor Hotkey Function for Trace Necking with DRC

BAE Version 6.4: Layout Editor Hotkey Function for Trace Necking with DRC

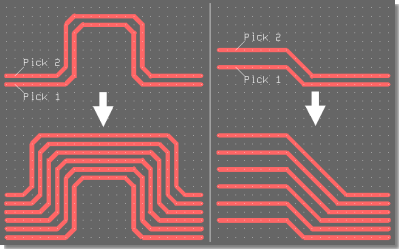

Trace Bunch/Pattern Generation

BAE Version 6.4: Trace Bunch/Pattern Generation

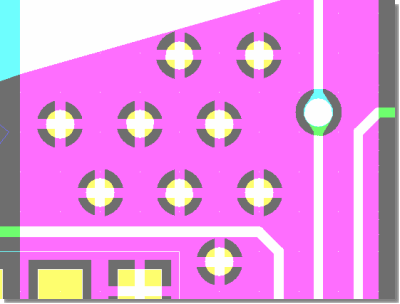

Via Pattern Assignments to Fill Areas

BAE Version 6.4: Via Pattern Assignments to Fill Areas
